What are the characteristics of common grease types in the market?
1. Calcium-based grease: good water resistance, but poor heat resistance, the maximum operating temperature: 60 ℃. Price: Low. 2, Sodium-based grease: extremely poor water resistance, heat resistance and rust resistance in general, generally used at about 80 ℃, the price is lower. 3, Aluminum-based grease: good rust resistance, poor heat resistance and water resistance, the maximum use temperature of 50 ℃, the price is low. 4, General lithium-based grease: good heat resistance, water resistance,...
Read More
Select grease according to operating temperature
The working temperature of the lubricating part is an important basis for selecting grease. The typical component that uses grease is a rolling bearing. As far as the relationship between bearing temperature and grease life is concerned, every 10-15 ° C increase in bearing temperature reduces the grease life by about 1/2. Generally, the temperature of the outer ring of the bearing is about 15 ° C lower than the temperature of the inner ring. The temperature of the bearings working at low and med...
Read More
Choose grease according to purpose
When selecting a grease, the purpose of the grease should be clearly defined. According to the role played by grease, grease can be roughly divided into three categories: friction reduction, protection, and sealing. It depends on which part of the grease needs to be applied, which one is the main role of the grease. grease. As antifriction grease, the range of resistance to high and low temperature, the limit of resistance to rotation speed, and the load should be considered. As a protective gre...
Read More

FAQ

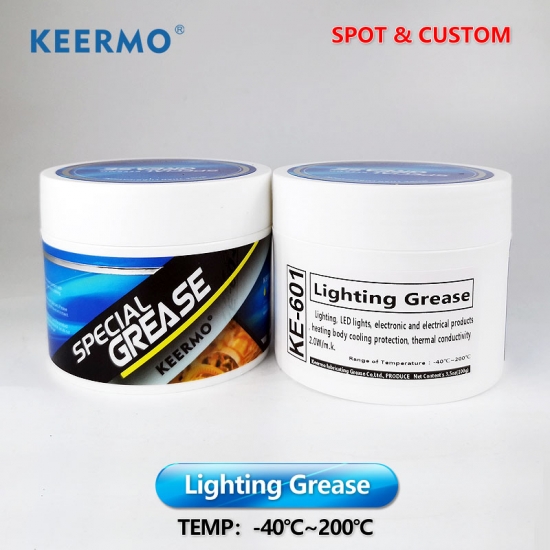

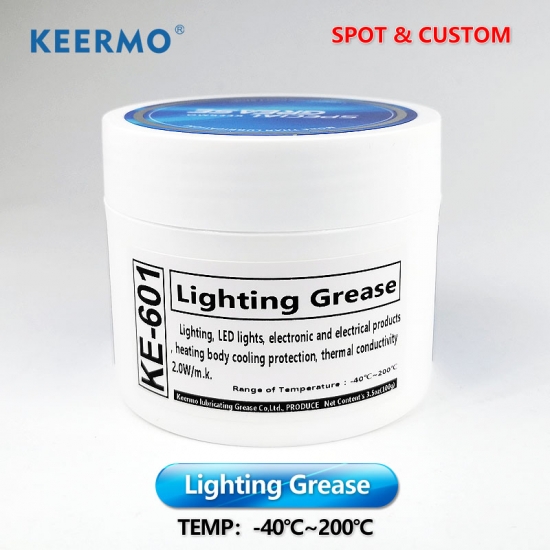

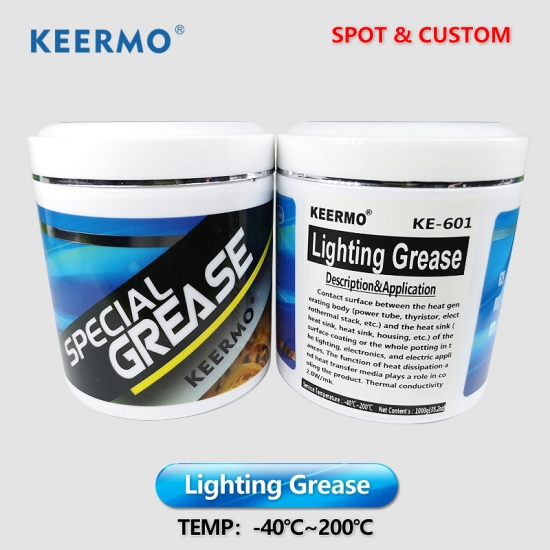

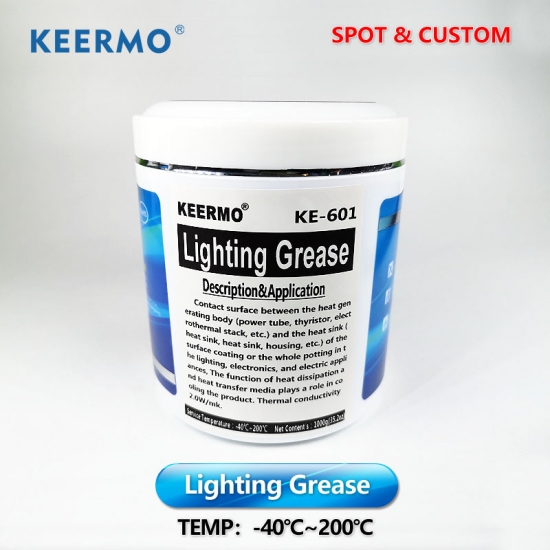

Keermo KE-601 Lighting paste Thermal grease

KE-601 Lighting Thermal Foam is a white paste made of synthetic oil, thermal insulation filler and functional additives. Designed for the heat dissipation of various electronic and electrical equipment, and the heat transfer insulation medium designed for the heat dissipation of the power amplifier tube and the heat sink, the thermal contact resistance of the solid interface is reduced, and the heat dissipation effect is improved.

item no. :
KE-601
Brand:
Keermo
MOQ :
1
origins :
CHINA
color :
White translucent grease
Port :
Shenzhen，Guangzhou
lead date :
5-7Days

contact now

specs
Other Info

Name：Lighting paste(AKA：Thermal grease)

Model：KE-601

Overview：

Scope of application:

Contact surface between the heat generating body (power tube, thyristor, electrothermal stack, etc.) and the heat sink (heat sink, heat sink, housing, etc.) of the surface coating or the whole potting in the lighting, electronics, and electric appliances, The function of heat dissipation and heat transfer media plays a role in cooling the product. Thermal conductivity 2.0W/m.k.

Operating Temperature：

-40℃ ~ 200 ℃.

Performance Characteristics:

1.Excellent thermal conductivity, very low evaporation loss and oil separation, high temperature does not flow;

2.Excellent insulation performance, non-toxic, non-curing, non-corrosive to the substrate, stable chemical properties;

3.Water resistance, ozone resistance, weathering resistance, long-term use at -40℃~ 200℃temperature;

4.Good thixotropy, easy to use, economical and practical, and the coating or potting process is simple.

Representative Materialized Data:

Exterior	White paste
Cone penetration (1/10mm)	330
Density (g/cm3)	2.5
Thermal conductivity (25℃, W/m.k)	2.0
Thermal impedance (℃-in2/W)	0.1
Copper corrosion (100℃ 24h)	Qualitied
Working temperature (℃)	-40℃～200℃

Storage notes:

1.Store in a cool, ventilated and dry place, at room temperature below 45℃, and not invert.
2.should not be close to acid and alkali, oxidants and other corrosive substances, not exposure.
3.stacking layers can not exceed 4 tubs, and should be off the ground, 10CM or more from the wall.
Handling precautions:
Handle the product with care and do not use dangerous actions such as throwing or falling.
Specifications:
1000g/tin 5kg/tubs 16kg/tubs
