What are the characteristics of common grease types in the market?
1. Calcium-based grease: good water resistance, but poor heat resistance, the maximum operating temperature: 60 ℃. Price: Low. 2, Sodium-based grease: extremely poor water resistance, heat resistance and rust resistance in general, generally used at about 80 ℃, the price is lower. 3, Aluminum-based grease: good rust resistance, poor heat resistance and water resistance, the maximum use temperature of 50 ℃, the price is low. 4, General lithium-based grease: good heat resistance, water resistance,...
Read More
Select grease according to operating temperature
The working temperature of the lubricating part is an important basis for selecting grease. The typical component that uses grease is a rolling bearing. As far as the relationship between bearing temperature and grease life is concerned, every 10-15 ° C increase in bearing temperature reduces the grease life by about 1/2. Generally, the temperature of the outer ring of the bearing is about 15 ° C lower than the temperature of the inner ring. The temperature of the bearings working at low and med...
Read More
Choose grease according to purpose
When selecting a grease, the purpose of the grease should be clearly defined. According to the role played by grease, grease can be roughly divided into three categories: friction reduction, protection, and sealing. It depends on which part of the grease needs to be applied, which one is the main role of the grease. grease. As antifriction grease, the range of resistance to high and low temperature, the limit of resistance to rotation speed, and the load should be considered. As a protective gre...
Read More

FAQ

High voltage power supply insulation grease

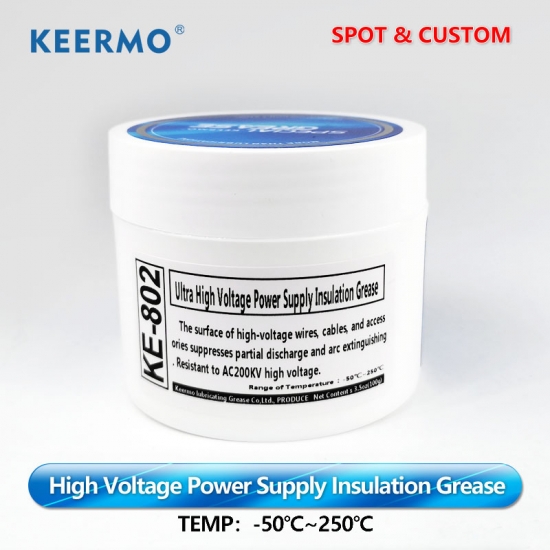

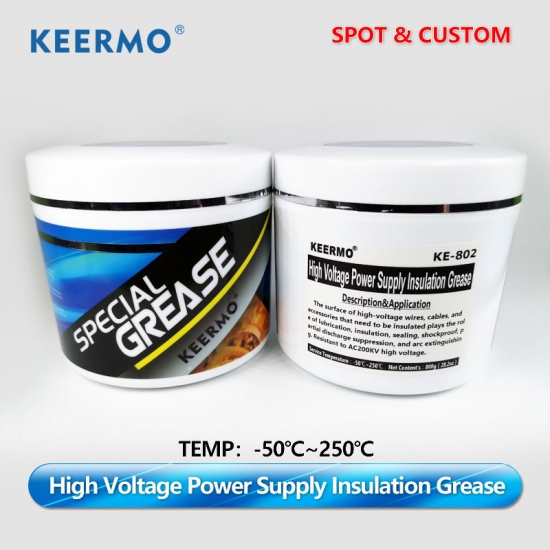

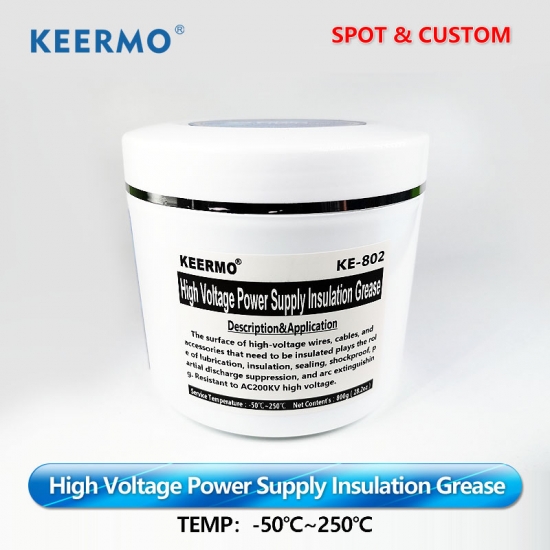

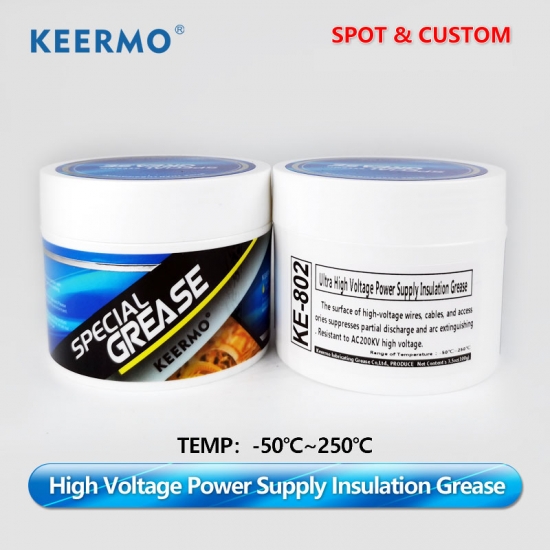

Keermo KE-802 Ultra high voltage power supply insulation grease

KE-802 ultra-high voltage power supply insulation grease is a synthetic silicone oil as the main raw material, adding heat-resistant and excellent lubricating properties; transparent silicone grease composite made by a specific process.

item no. :
KE-802
Brand:
Keermo
MOQ :
1
origins :
CHINA
color :
White translucent grease
Port :
Shenzhen，Guangzhou
lead date :
5-7Days

contact now

specs
Other Info

Name：Ultra high voltage power supply insulation grease

Model：KE-802

Overview：

Applicable range：

The surface of high-voltage wires, cables, and accessories that need to be insulated plays the role of lubrication, insulation, sealing, shockproof, partial discharge suppression, and arc extinguishing. Resistant to AC200KV high voltage.

Operating Temperature：

-50℃ ~ 250 ℃.

Performance Characteristics:

1.high drop point.

2.high temperature resistance, aging resistance.

3.Insulation, waterproof and moisture proof.

4.Good sealing performance.

Representative Materialized Data:

No.	Item	Typical data
1	Exterior	Light yellow transparent uniform grease
2	Cone penetration	280
3	Drop point ℃	N/A
4	100,000 shear test cone penetration is not greater than	30
5	Water resistance (80℃)% is not greater than	10
6	Copper corrosion (100℃ 24h)	Qualitied
7	Steel mesh oil distribution (100℃ 24h)	2.0
8	Oxidation stability (100℃ 24h)	0.5
9	Working temperature (℃)	-50℃～250℃

Storage notes:

1.Store in a cool, ventilated and dry place, at room temperature below 45℃, and not invert.
2.should not be close to acid and alkali, oxidants and other corrosive substances, not exposure.
3.stacking layers can not exceed 4 tubs, and should be off the ground, 10CM or more from the wall.
Handling precautions:
Handle the product with care and do not use dangerous actions such as throwing or falling.
Specifications:
800g/tin 5kg/tubs 16kg/tubs
